6966 DIY Bluetooth 5.0 Audio Receiver Board Module MP3 Lossless Player Wireless Stereo Music Amplifier Module (Black)
6966 DIY Bluetooth 5.0 Audio Receiver Board Module MP3 Lossless Player Wireless Stereo Music Amplifier Module (Black)
No reviews
Regular price
RM44.00 MYR
Regular price
RM69.00 MYR
Sale price
RM44.00 MYR
Unit price
/
per
FREE DELIVERY on all orders.
Hurry! Almost sold out...
Couldn't load pickup availability
FREE Shipping
FREE Shipping
FREE SHIPPING on all orders. Fully Insured.
Handling time: 1 - 3 working days.
Transit time: 5 - 10 working days.
Return Guarantee
Return Guarantee
For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. BashFashion will make compensation based on the damage situation.
Features
1. Using Bluetooth 5.0 main control chip, good transmission effect and high stability
2. With button control, there are control up and down music, volume addition and subtraction, playback, pause, switch machine, etc., and reserved high and low level control interfaces, regardless of daily use, and DIY modification, it is very playable
3. Micro 5 Pin interface power supply, ordinary mobile phone charger charging cable can be used.

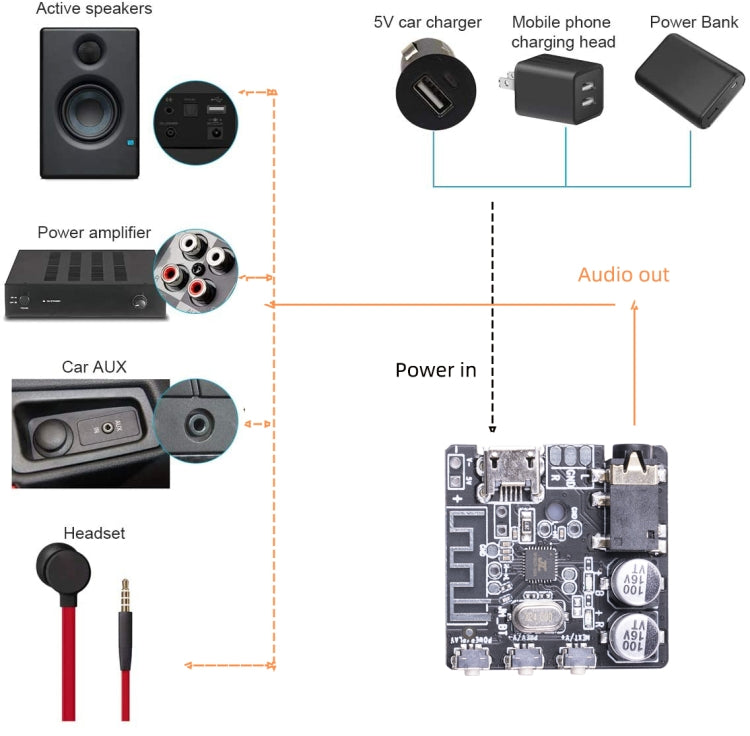

4. Product use: Bluetooth audio signals from mobile phones, laptops, and tablets can be transmitted to power amplifiers, active speakers and other devices through this Bluetooth audio receiver. The audio interface can also be connected to ordinary headphones with a 3.5mm interface. The headset becomes a Bluetooth headset (without a microphone, voice chat is not supported)
Specification
1. Power interface: Micro 5 Pin (reserved 2.5mm welding port, this model does not support battery power supply)
2. Input voltage: 3.7V-5V
3. Signal-to-noise ratio: 90DB
4. THD+N: -70DB
5. Crosstalk: -86db
6. DNR: 91dB
7. Transmission protocol: A2DP/AVCTP/AVDTP/HFP
8. Transmission distance: about 10 meters (the shorter the distance, the better the stability)
9. Output interface: 3.5mm stereo (reserved soldering points, you can DIY by yourself)
10 Dimensions: 30mm x 30mm
1. Using Bluetooth 5.0 main control chip, good transmission effect and high stability
2. With button control, there are control up and down music, volume addition and subtraction, playback, pause, switch machine, etc., and reserved high and low level control interfaces, regardless of daily use, and DIY modification, it is very playable
3. Micro 5 Pin interface power supply, ordinary mobile phone charger charging cable can be used.
4. Product use: Bluetooth audio signals from mobile phones, laptops, and tablets can be transmitted to power amplifiers, active speakers and other devices through this Bluetooth audio receiver. The audio interface can also be connected to ordinary headphones with a 3.5mm interface. The headset becomes a Bluetooth headset (without a microphone, voice chat is not supported)
Specification
1. Power interface: Micro 5 Pin (reserved 2.5mm welding port, this model does not support battery power supply)
2. Input voltage: 3.7V-5V
3. Signal-to-noise ratio: 90DB
4. THD+N: -70DB
5. Crosstalk: -86db
6. DNR: 91dB
7. Transmission protocol: A2DP/AVCTP/AVDTP/HFP
8. Transmission distance: about 10 meters (the shorter the distance, the better the stability)
9. Output interface: 3.5mm stereo (reserved soldering points, you can DIY by yourself)
10 Dimensions: 30mm x 30mm
